TECHNICAL REPORT - Dimensional based particulars
Title of Technical Report:
"Municipal castings. Manhole tops. Covers, – lids and frames, – for use in vehicular and pedestrian areas."
"Particulars of product; Dimensional specification, – RD 615 mm \ 24.30 in."
"Assembly of lids and frames – medium duty loading class – 80/125/150 kN / 16,000/25,000/40,000 LBS."
Relevant documents to be considered: Basic standards, as are: AASHTO(M306), GOST3634, EN124, and others.
The dimensional particulars refers to medium duty manhole covers of 80/125/150 kN or 16,000/25,000/40,000 LBS loading class – which are commonly casted by medium or high grade grey iron or medium grade ductile iron in compliance with loading class and pieces (plates/walls/reinforcements) structure.
Note!
Hinges or locking device are not subject of the Technical Report.
The dimensional particulars refers to medium duty manhole covers of 80/125/150 kN or 16,000/25,000/40,000 LBS loading class – which are commonly casted by medium or high grade grey iron or medium grade ductile iron in compliance with loading class and pieces (plates/walls/reinforcements) structure.
Note!
Hinges or locking device are not subject of the Technical Report.
Measurements in metric or in English units must be considered apart.
Mechanical drawings in which the Technical Report consists - are considered as drafts, therefore there are provided as-is.
Dimensions which are not mentioned, even in the case there are or not structural thickness of pieces, are not the subject of the Technical Report, - therefore each manufacturer is setting them as he considers properly.
Dimensions which are not mentioned, even in the case there are or not structural thickness of pieces, are not the subject of the Technical Report, - therefore each manufacturer is setting them as he considers properly.

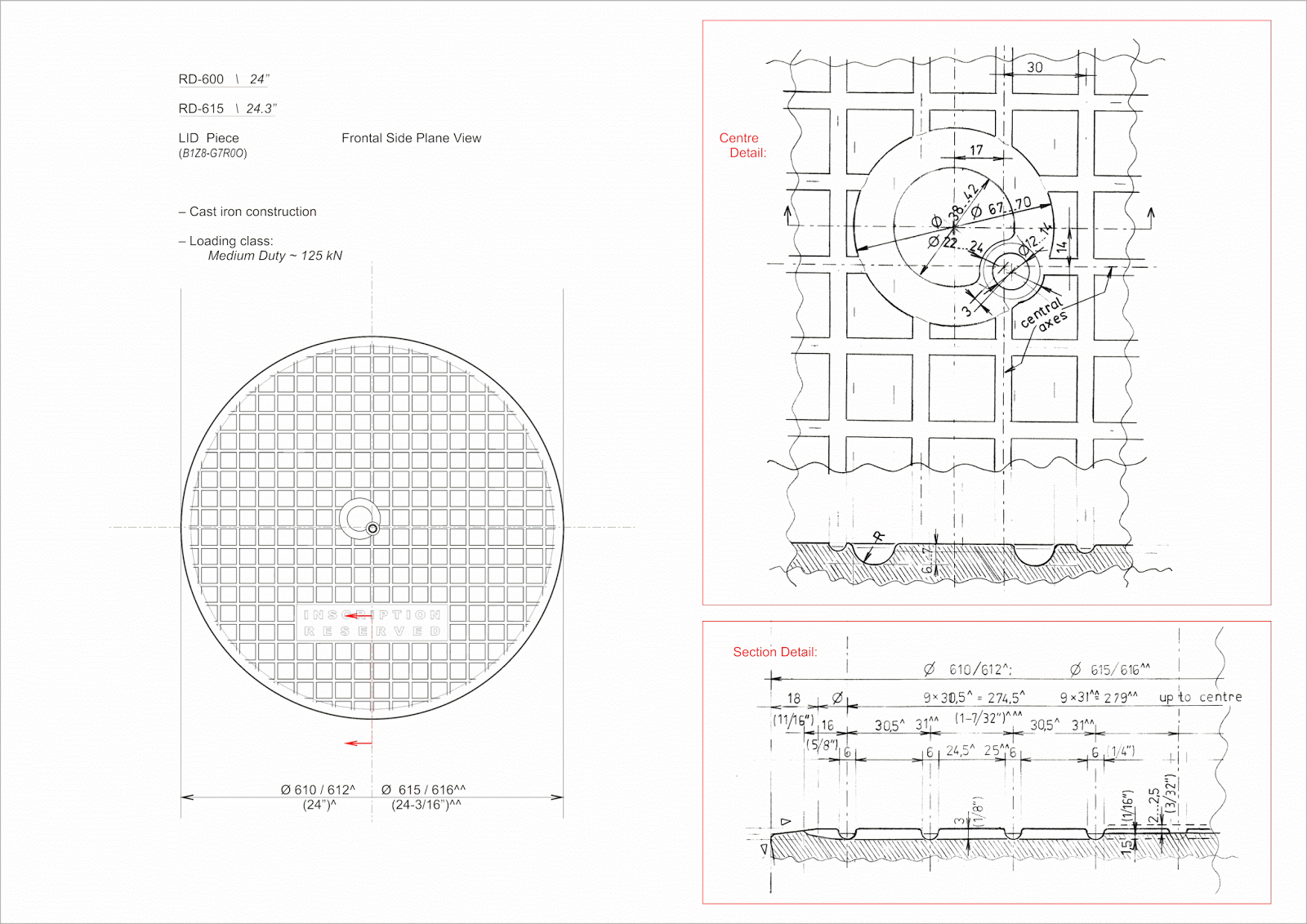

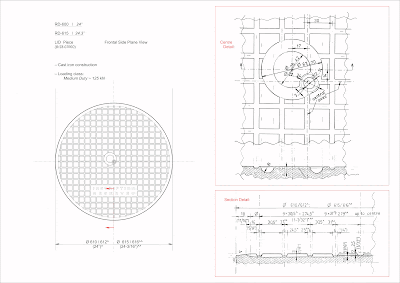

Lids description:
Frame description:
